Transformer: The Starting Point of Everything — What Problem Did It Actually Solve?

The 2017 Transformer paper killed RNNs with pure attention. This is a deep dive into self-attention, multi-head attention, positional encoding, and why parallelism changed everything.

Prologue: The Bottleneck of Sequential Processing

Before 2017, sequence models meant RNNs and LSTMs. They process tokens one at a time: hidden state at step t depends on step t-1. This creates two fatal problems:

  1. No parallelism — training cannot be parallelized across time steps, so you can’t leverage GPUs effectively
  2. Long-range information decay — even with gating mechanisms, information from 100 steps ago gets diluted through repeated transformations

Figure 1: RNN sequential processing — hidden state must pass through every step

The Transformer paper’s answer was radical: throw away recurrence entirely. Use attention for everything.

Self-Attention: The Core Mechanism

The formula every LLM engineer knows:

$$\text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V$$

Every token computes a query, key, and value vector. The attention score between token i and token j is the dot product of query_i and key_j, scaled by √d_k, then softmaxed into weights. The output for token i is a weighted sum of all value vectors.

Why the √d_k scaling? For large d_k, dot products grow large in magnitude, pushing softmax into regions with tiny gradients. Dividing by √d_k keeps the variance stable.

1
2
3
4

# Scaled dot-product attention
scores = Q @ K.T / math.sqrt(d_k)     # [seq, seq]
attn = softmax(scores, dim=-1)        # weights sum to 1
output = attn @ V                      # [seq, d_v]

The key property: every token can attend to every other token in O(1) sequential steps. Long-range dependencies are now direct paths, not chains of transformations.

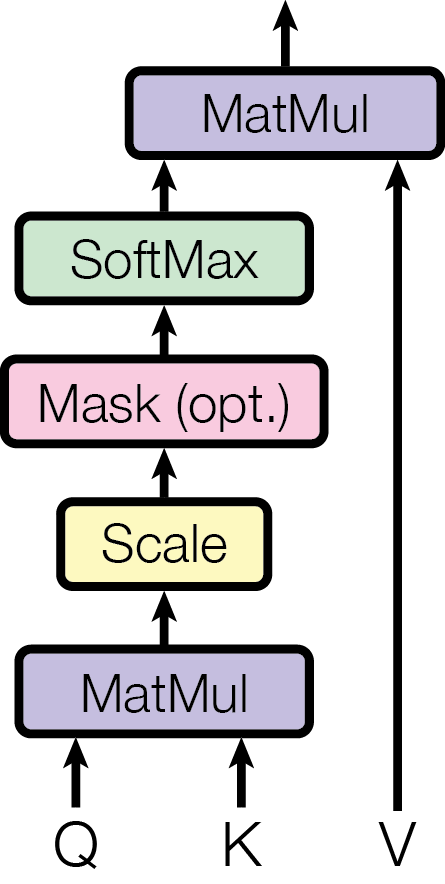

Figure 2: Scaled dot-product attention

Multi-Head Attention: Looking from Different Angles

One attention head learns one type of relationship. Multi-head attention runs h heads in parallel (each with smaller d_k), concatenates their outputs:

$$\text{MultiHead}(Q,K,V) = \text{Concat}(\text{head}_1, \ldots, \text{head}_h)W^O$$

where each head_i = Attention(QW_i^Q, KW_i^K, VW_i^V).

With 8 heads of dimension 64 (total 512), one head might track syntax, another coreference, another positional patterns. Empirically, heads specialize without explicit instruction.

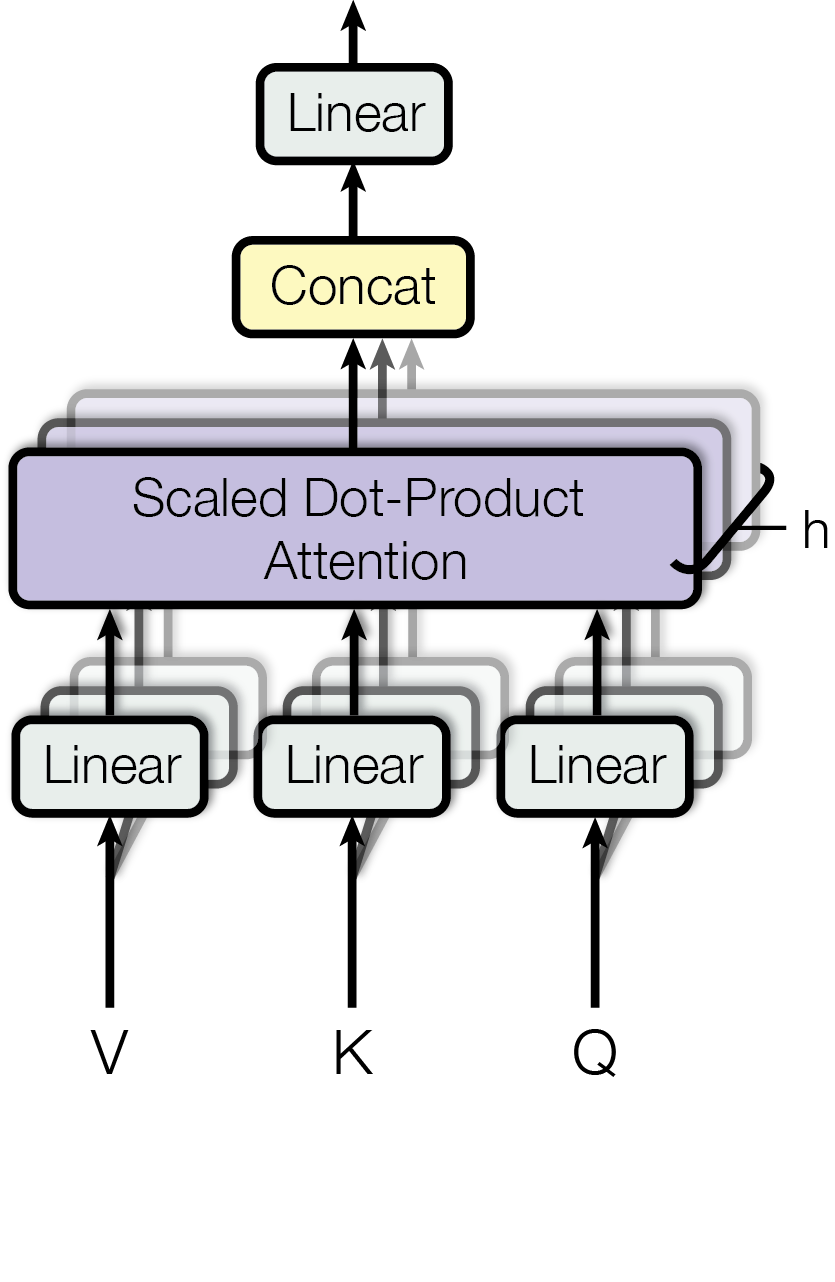

Figure 3: Multi-head attention — h parallel attention operations

Positional Encoding: Where Am I?

Attention is permutation-invariant — it has no notion of word order. “Dog bites man” and “man bites dog” produce identical attention patterns. The fix: add positional encodings to input embeddings.

The original paper used sinusoidal functions:

$$PE_{(pos, 2i)} = \sin\left(\frac{pos}{10000^{2i/d}}\right), \quad PE_{(pos, 2i+1)} = \cos\left(\frac{pos}{10000^{2i/d}}\right)$$

Each dimension corresponds to a sinusoid of different wavelength. The intuition: relative positions can be computed as linear transformations, and the model can extrapolate to longer sequences.

Training Details

Parameter Value
Layers (Encoder/Decoder) 6 / 6
Model dimension 512
Heads 8
FFN inner dimension 2048
Optimizer Adam (β1=0.9, β2=0.98)
Learning rate schedule warmup 4000 steps, then ∝ d_model^-0.5 · step^-0.5
Dropout 0.1
Label smoothing 0.1

Why Transformer Won

  1. Full parallelism — all tokens processed simultaneously during training
  2. Direct long-range paths — max path length between any two tokens is O(1)
  3. Scalable — architecture has no recurrence bottleneck, so it scales with compute

This third property turned out to matter most. Transformer became the substrate for BERT, GPT, and every modern LLM — not because attention is theoretically optimal, but because it exploits GPUs perfectly and keeps getting better as you scale.
